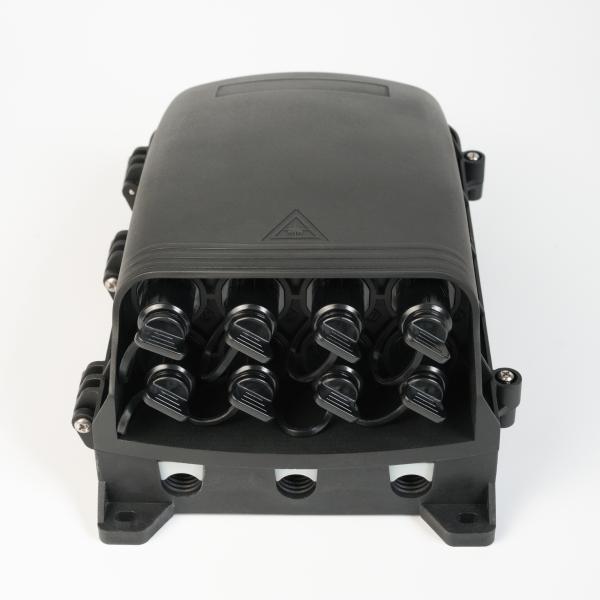

GFS-8A-X Pre-connectorized FTTH Terminal Box 8 Cores Fiber Optical distribution Closure IP 68 FDB 281.4177108.8mm

Brand Name : FT

Model Number : GFS-8A-X

Certification : ROSH

Place of Origin : CHINA

MOQ : 100PCS

Price : 10-25USD

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000PCS/DAY

Delivery Time : 15-30 DAYS

Packaging Details : CARTON

material : PP or PC+ABS.

COLOR : BLACK OR GREY OR CUSTOMIZATION

IP : 68

CAPACITY : max 36CORES

Contact Now

1.1 Description

Pre-connectorized optical distribution box as the most advanced FTTX network distribution node equipment, provide quick and reliable connection, good protection and management for the FTTX network.

Production type	Classification
GFS-8A-X	Optical fiber cable distribution box

2. Characteristics

2.1. Advanced structure design, easy operation and reasonable routing.

2.2. Material: PP or PC+ABS.

2.3. Moisture proof, waterproof, dust-proof, anti-aging.

2.4. Protection level up to IP65.

2.5. 3 silicone plugs for incoming and outgoing cables and 8 pre connected adapters.

2.6. Installation method: pole-mounted, aerial-mounted, wall-mounted.

3. Specifications

3.1 Mechanical specifications

Item	Specifications	Remark
External dimension(mm)	281.4177108.8(ABC)
Installation hole position(mm)	265133/52.128.6 (DE/F*G)
Color	Black
Size and quantity of optical cable hole	3 silicone plugs for incoming and outgoing cables and 8 pre connected adapters
Capacity(Max)	36 cores
Into the largest cable diameter (mm)	ᴓ8~14
IP protection level	IP65
Flammability	UL94-V0
Neutral salt spray test (NSS)	120 h
